Traditional Roof Mount Attic Fan

Revolutionizing Airflow, Efficiency, and Installation

When it comes to attic ventilation, having a reliable and efficient solution is crucial for maintaining a comfortable living environment and protecting your home from potential damage. That's why we are thrilled to unveil our brand new QuietCool AFR line, a revolutionary roof mount attic fan line that outperforms any other product on the market today. With its unparalleled design, advanced features, and ease of installation, the AFR line is the go-to choice for homeowners and professionals alike.

Quick Facts

icon

Energy-Efficient

PSC MOTOR

icon

RUNS UP-TO

1,266 CFM

icon

AS LOW AS

76 WATTS

icon

PLUG

AND PLAY

icon

BUILT-IN

THERMOSTAT

icon

BUILT-IN

FIRE FUSE

icon

COOL & VENTILATE YOUR ATTIC

Cool your attic by up to 30-50°F and within 10°F of outside temperature whe properly sized.

icon

SAVE UP TO 30% ON A/C USAGE

By cooling the attic, you can save up to 30% on your most expensive home appliance, the A/C

icon

TOTAL CLIMATE CONTROL

Included thermostat for easy control of your attic fan
Sets points between 50°F and 120°F

icon

INTERCHANGEABLE FLASHINGS

Primary Flashing included for shingle roofs
Optional Secondary Flashing available for tile Roofs
Optional Curb Flashing

icon

WEATHERPROOF DESIGN

One-piece, stamped steel hood - no seams
One-piece perforated cylindrical housing
High-quality UV resistant paint coating for enhanced protection from fade and chalk

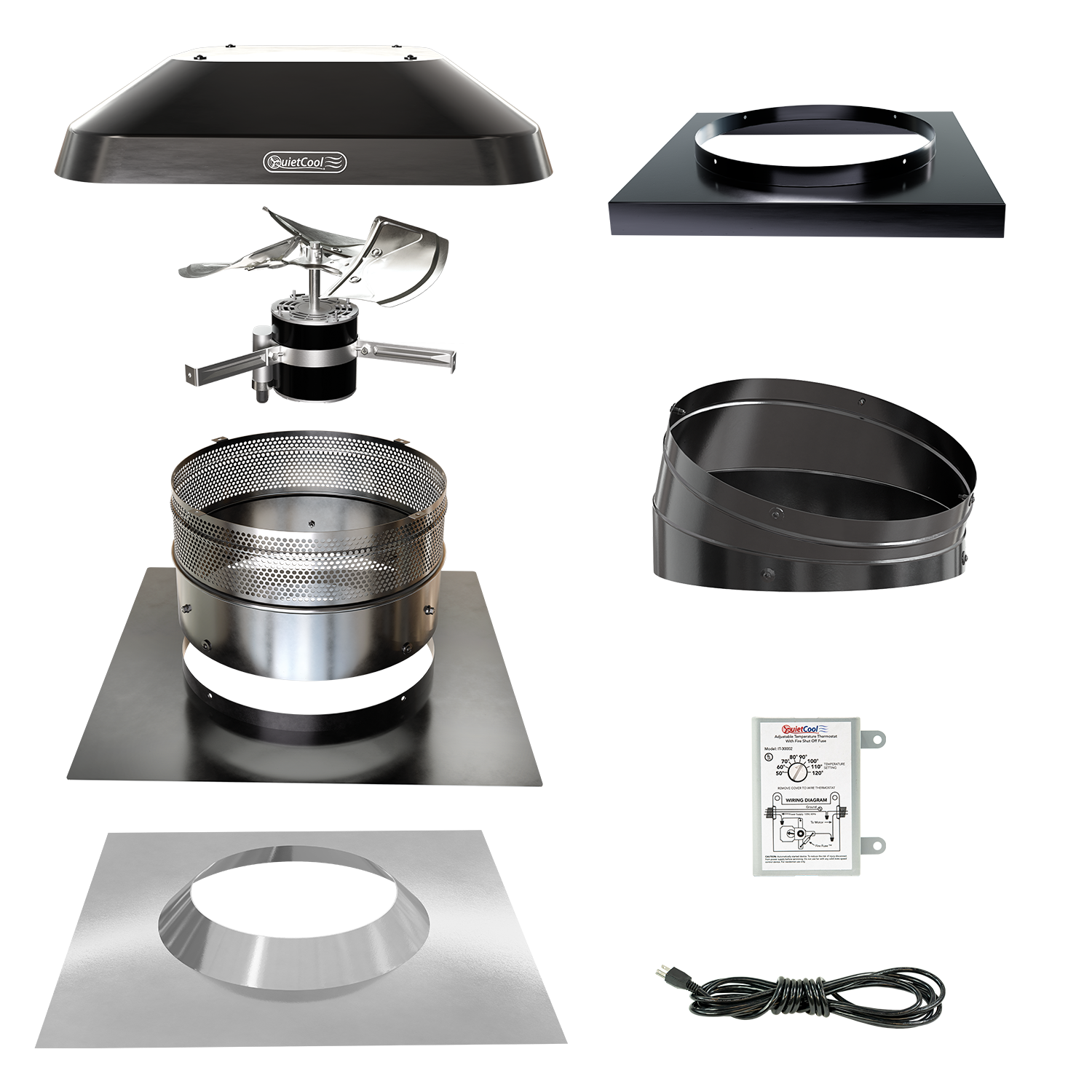

Product Diagram

Hover or tap for more information

Traditional

ONE-PIECE STAMPED STEEL HOOD

With no seams or welds, this design not only enhances the fan's durability but also ensures optimal airflow within the attic space

COMPUTER BALANCED FAN BLADE

High precision fan blades that cut through the air in the most effective and efficient way possible

ENERGY-EFFICIENT MOTORS

Electronically Commutated Motor (ECM) or Permanenet Split Capacitor (PSC) Motor depending on model

ONE-PIECE STAMPED STEEL HOUSING

One-piece perforated cylindrical housing features an integrated wildlife guard to keep your attic protected from the elements while optimizing airflow.

HIGH-QUALITY POLYESTER PAINT COATING

The hood, housing, and Primary Flashing feature a high-quality polyester paint coating that offers premium film integrity and extreme UV protection

PRIMARY FLASHING

Included Primary Flashing is designed for easy installation or shingle roofs with 3:12 to 8:12 roof pitch.

SECONDARY FLASHING

Optional Secondary Flashing for installation on tile roofs, with 3:12 to 8:12 roof pitch. Maleable aluminum design allows the flashing to be easily molded to s-Tile or M-tile roofs.

CURB FLASHING

Optional Curb Flashing for installation on flat or low-pitch roofs on a curb, with less than 3:12 roof pitch.

POWER CORD

Included 20 foot power cord allows easy plug-and-play installation.

MANUAL CONTROL

Manual Thermostat Control depending on model

Traditional 1

ONE-PIECE STAMPED STEEL HOOD

With no seams or welds, this design not only enhances the fan's durability but also ensures optimal airflow within the attic space

COMPUTER BALANCED FAN BLADE

High precision fan blades that cut through the air in the most effective and efficient way possible

ENERGY-EFFICIENT MOTORS

Electronically Commutated Motor (ECM) or Permanenet Split Capacitor (PSC) Motor depending on model

ONE-PIECE STAMPED STEEL HOUSING

One-piece perforated cylindrical housing features an integrated wildlife guard to keep your attic protected from the elements while optimizing airflow.

HIGH-QUALITY POLYESTER PAINT COATING

The hood, housing, and Primary Flashing feature a high-quality polyester paint coating that offers premium film integrity and extreme UV protection

PRIMARY FLASHING

Included Primary Flashing is designed for easy installation or shingle roofs with 3:12 to 8:12 roof pitch.

SECONDARY FLASHING

Optional Secondary Flashing for installation on tile roofs, with 3:12 to 8:12 roof pitch. Maleable aluminum design allows the flashing to be easily molded to s-Tile or M-tile roofs.

CURB FLASHING

Optional Curb Flashing for installation on flat or low-pitch roofs on a curb, with less than 3:12 roof pitch.

POWER CORD

Included 20 foot power cord allows easy plug-and-play installation.

MANUAL CONTROL

Manual Thermostat Control depending on model

Features

placeholder1

Design

Unparalleled Design for Superior Performance

Designed with precision in the USA, the AFR fan boasts a one-piece, stamped steel hood, completely free of seams or welds. This seamless design not only enhances the fan's durability but also ensures optimal airflow within your attic space. Paired with high-performance computer-balanced fan blades, the AFR line effortlessly cuts through the air, maximizing efficiency and ventilation.

placeholder2

Design

Wildlife Protection and Durable Housing

The AFR's one-piece perforated cylindrical housing is not only aesthetically pleasing but also features an integrated wildlife guard. This ensures the integrity of your attic by preventing bugs and other wildlife from accessing your attic while still allowing for optimal ventilation. The housing's high-quality polyester paint coating offers premium film integrity and extreme UV protection, ensuring its longevity and resistance to harsh weather conditions.

Efficiency

Energy-Efficient Motor Technology

In the PRO models, you will find extremely efficient and capable two-speed Permanent Split Capacitor (PSC) motors. These motors are very powerful and ensure the fan operates at peak performance for the life of the fan.

placeholder1
Image 2 Image 2 Image 2

Technology

Customizable Control for Personalized Comfort

For our most inexpensive model, the adjustable thermostat allows manual adjustment from 50º to 120º, giving you precise control over your attic's temperature. When it comes to attic ventilation, safety is of paramount importance, and the new AFR line takes it to the next level with its advanced safety features. One notable feature is the built-in fire safety shut off fuse that activates if the temperature in the attic rises above 182ºF. This intelligent system ensures that in the event of a fire, the attic fan will automatically shut off, helping to prevent the spread of flames and potentially saving lives and your property. And with the included 20-foot power cord, you have ample length to easily connect the fan to a power source without the need for additional extension cords or complicated wiring. This plug-and-play design saves you time and effort during the installation process.

Image 1 Image 1 Image 1

Installation

Versatile Installation Options for Any Roof Type

Furthermore, the AFR line offers exceptional versatility with its interchangeable flashings, accommodating various roof types seamlessly. The primary flashing is designed for easy installation on shingle roofs, while the optional secondary flashing eliminates the need for fabrication when installing on cement tile roofs. For S-tile or M-tile type roofs, the malleable aluminum design allows the secondary flashing to be easily molded to fit. In addition, the AFR line provides the option to curb mount the fan to a flat or low-pitch roof using the curb flashing, with no fabrication required. Optional Flashings Coming Soon.

Image 3 Image 3 Image 3

Installation

Works with a Variety of Different Roof Types

Experience the versatility and compatibility of the revolutionary AFR line of roof mount attic fans, designed to effortlessly adapt to a wide range of roof types. Whether you have a flat or pitched roof, or maybe you have a metal, asphalt, clay or countless other materials, the AFR line seamlessly integrates with them all. Its adaptive nature eliminates any concerns about compatibility, ensuring that you can enjoy the benefits of improved attic ventilation, regardless of your roof's unique characteristics. With the AFR line, the possibilities are limitless, making it the perfect choice for any roofing situation.

How Attic Fans Work

#1 Way To Improve Your Attic

Lower Attic Temperature

Lower Attic Temperature 30-50°F

Save up to 30% on A/C Usage

Keep the world Green

Help Keep the World Green

Prolong life of the roof

Prolong the life of the roof and home

Play Video
Play Video

Sizing

Size is very important

A properly sized attic fan is very important to ensure the most effective and efficient ventilation of your attic.
We recommend sizing your attic fan at .5 CFM per square foot of attic space for every 2 feet of peak attic height. This formula gives a minimum of 15 complete air exchanges per hour.
This means for a 1500 SQFT attic with a peak attic height of 4 feet, you will need an attic fan that moves at least 1500 CFM. If the peak attic height is only 2 feet, you would need at least 750 CFM. If the peak attic height is 6 feet, you would need at least 2250 CFM, and so on.
This math formula will work every time, for any size attic, and as always the more airflow the better.
This sizing formula provides a minimum of 15 complete air exchanges per hour which is equivalent to the sizing formula we use for our whole house fans.

Note that this sizing formula is based on attic square footage, not the square footage of the home. While in some cases they may be the same value, such as with a single story home, multi-story homes will have a different attic square footage than the home.

If you need assistance with sizing an attic fan, use our Attic Fan System Builder below.

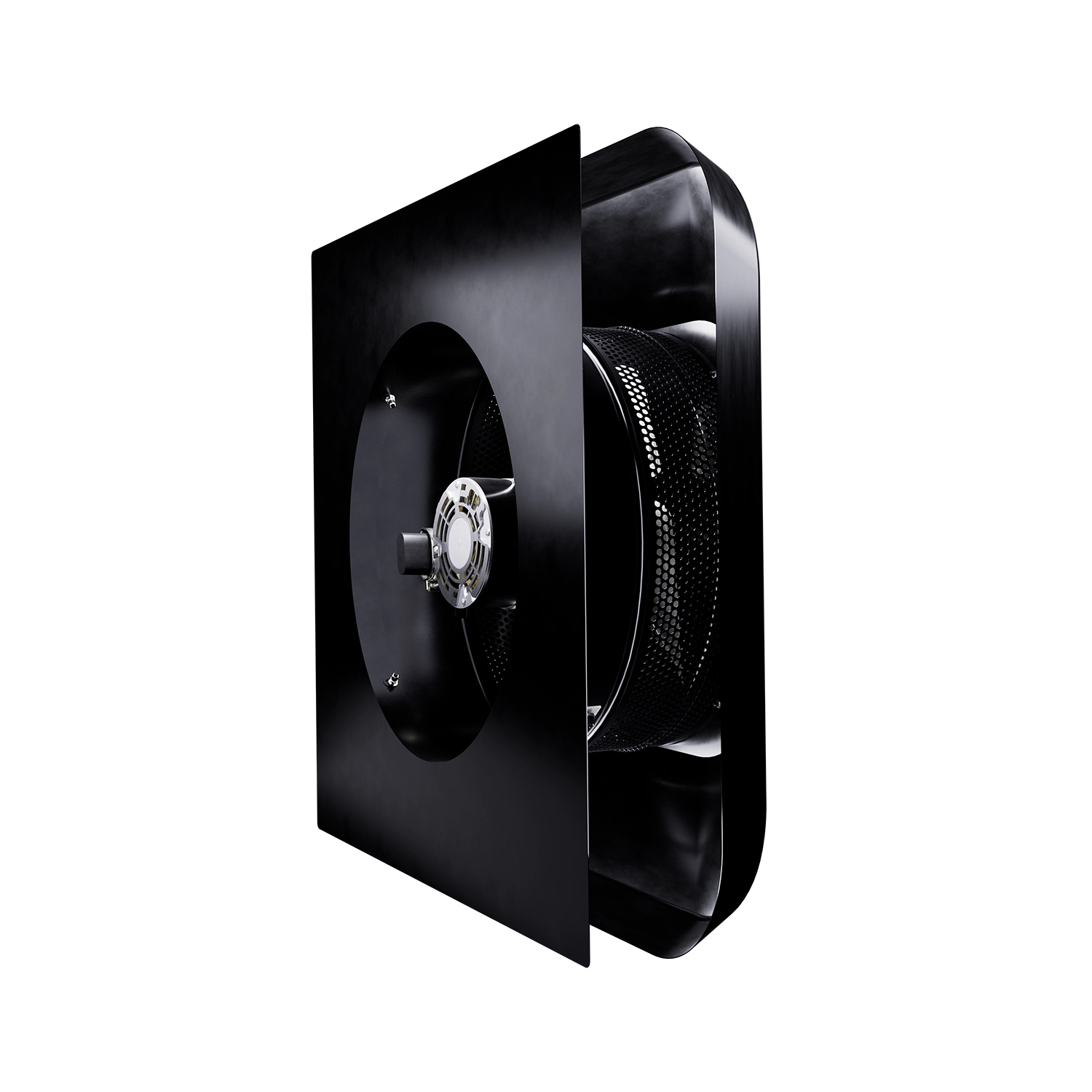

AFR PRO Specs

AFR PRO 1.3

Videos

Play Video

QuietCool AFR Roof Mount Attic Fan Installation - Tile

Play Video

QuietCool AFR Roof Mount Attic Fan Installation - Shingle

Play Video

QuietCool AFR PRO-1.3 Roof Mount Attic Fan

Play Video

Attic Fans and Whole House Fans - A Perfect Pairing

f

Upgrade your attic today!

With the new AFR line, you can transform your attic ventilation experience. Enjoy improved airflow, unmatched efficiency, and hassle-free installation. Say goodbye to discomfort and excess energy consumption - upgrade to the best roof mount attic fan line available. Choose the AFR line today and experience a new level of comfort and convenience in your home.
